Spearhead is a high-performance driven earth anchor system for utility, infrastructure and industrial projects where certainty below ground is non-negotiable.

EXPLORE THE SYSTEM Project enquiry ↗

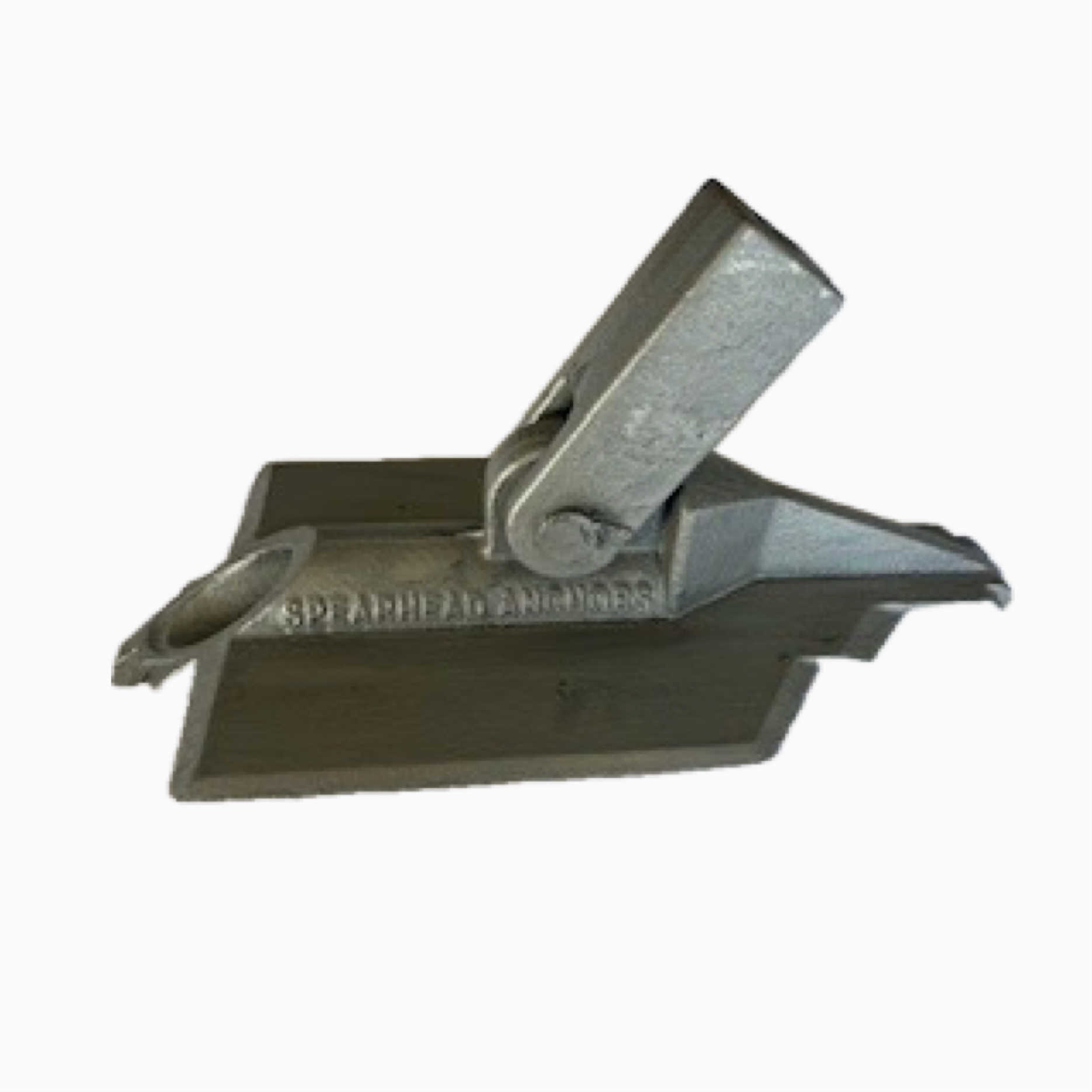

Spearhead galvanized earth anchor
PROTECTION STANDARDASTM A153 / HDG
SPH / 001 — INDIA
STRUCTURAL RESTRAINTGROUND ENGINEERINGGLOBAL SUPPLY
01 — SYSTEM PRINCIPLE

Driven fast.
Locked deep.
Verified on site.

A compact anchor engineered to develop serious resistance beneath the surface.

The Spearhead is driven to design depth and tensioned to rotate into its load-lock position—mobilising the surrounding soil with limited excavation and immediate readiness for connection.

01

Drive

Rapid installation to specified depth
02

Lock

Controlled rotation into load position
03

Verify

Project-specific proof testing

02 — ENGINEERED RANGE

Two formats.
One disciplined system.

SGI-400/15 castings, ASTM A153 hot-dip galvanized protection and standard rod interfaces support clear project selection.

CASTINGSGI-400/15
PROTECTIONASTM A153
ROD OPTIONS5/8", 3/4" & 1"
VALIDATIONPROOF TESTED
01
Compact

SH1

Envelope
14.65 × 7.00 in
Anchor weight
6.60 kg
Rod options
5/8", 3/4" or 1"
Published capacity
Application-rated
ENQUIRE ABOUT SH1
02
High area

SHSR

Envelope
17.00 × 12.50 in
Anchor weight
10.90 kg
Rod options
5/8", 3/4" or 1"
Published capacity
Up to 36,000 lbf*
ENQUIRE ABOUT SHSR

* Holding capacity depends on soil, installation depth, rod strength and field proof-test results. SHSR guidance ranges from 8,000 to 36,000 lbf.

03 — MANUFACTURING DEPTH

Control from
metal to market.

Production, treatment, inspection, packing and dispatch operate as one connected supply system for international buyers.

Spearhead components in production
01Manufacturing floor

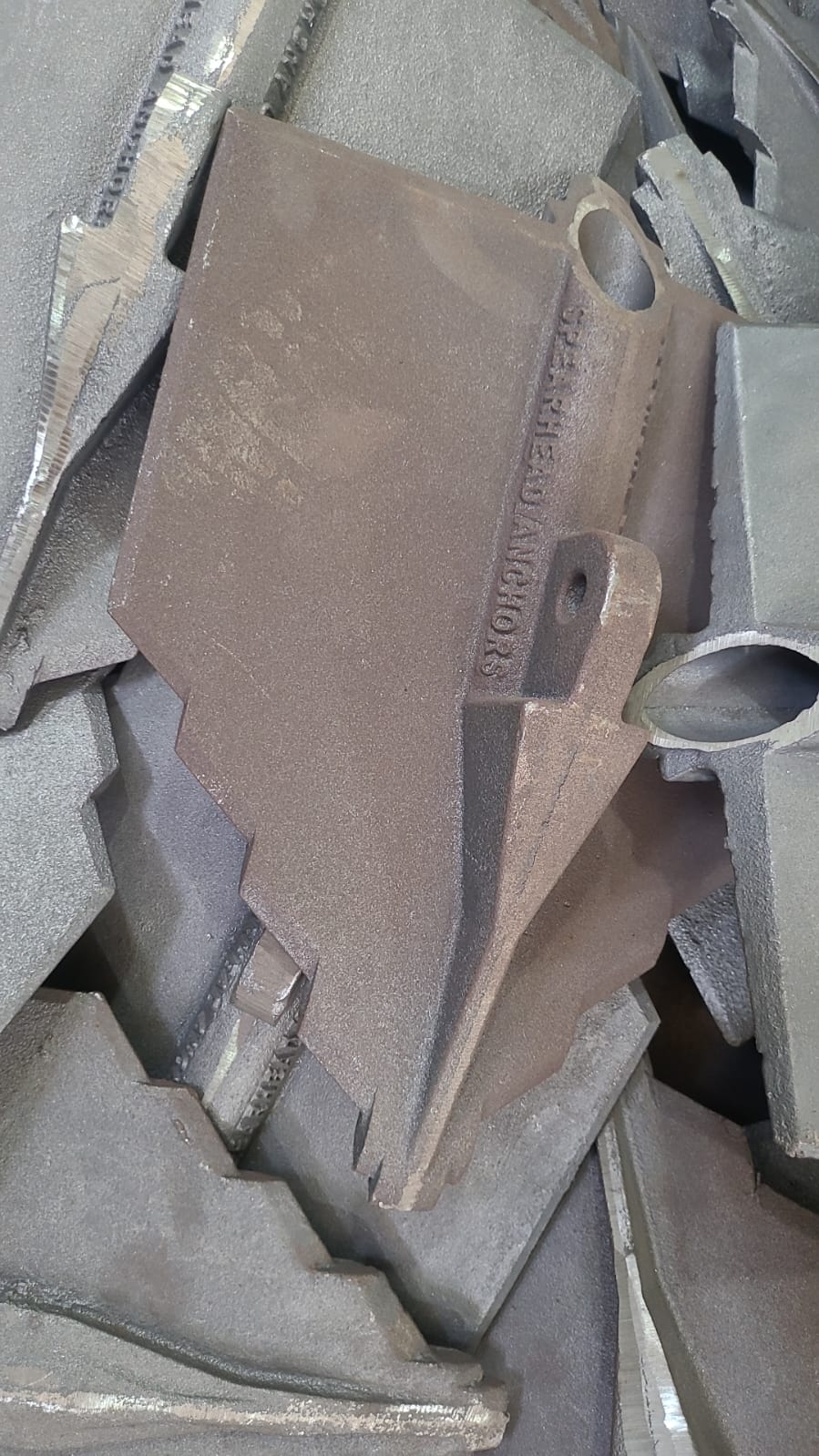

Spearhead earth anchor castings before final finishing
02Anchor castings
Protective surface treatment process
03Surface protection

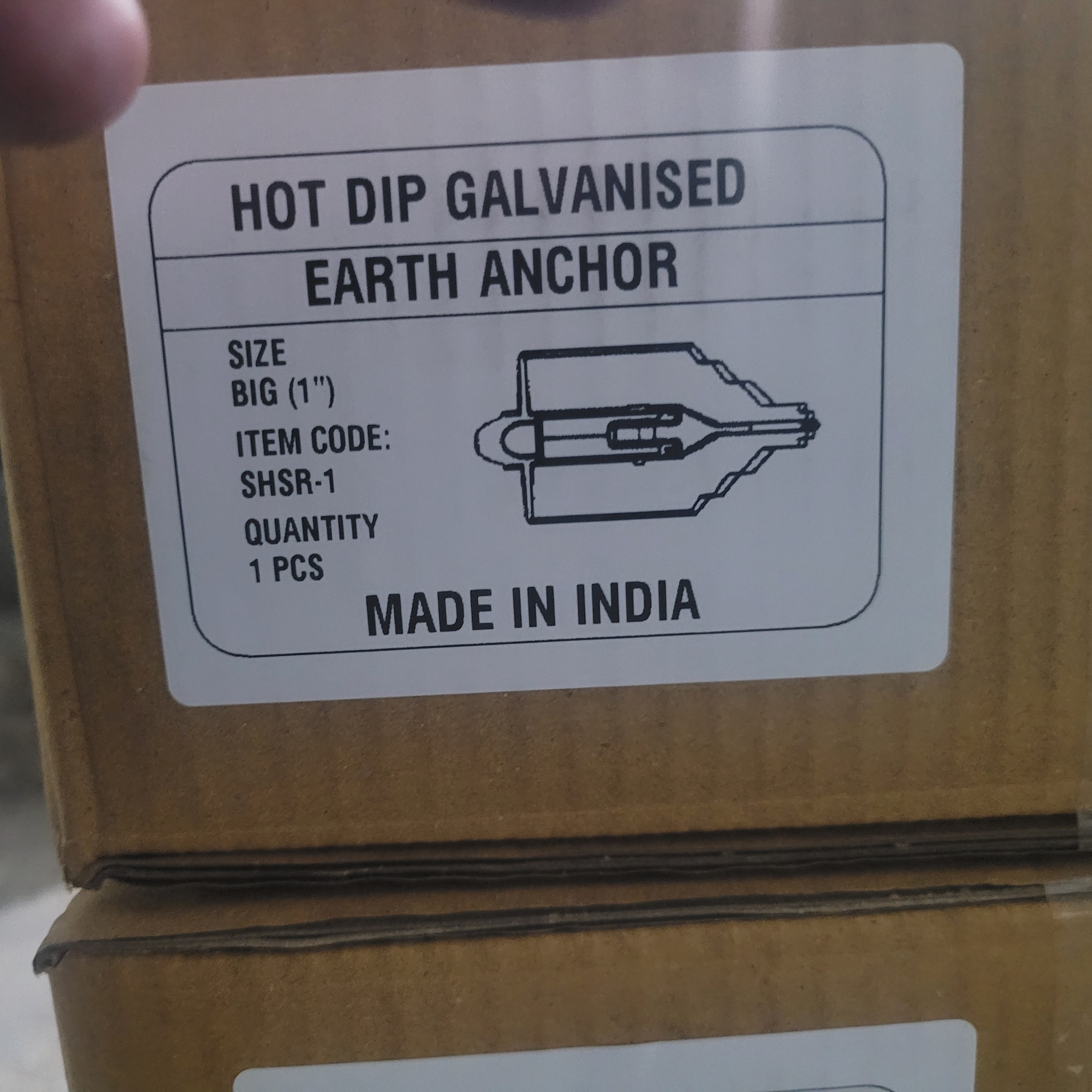

SHSR-1 carton label with size and product identification
04Product traceability

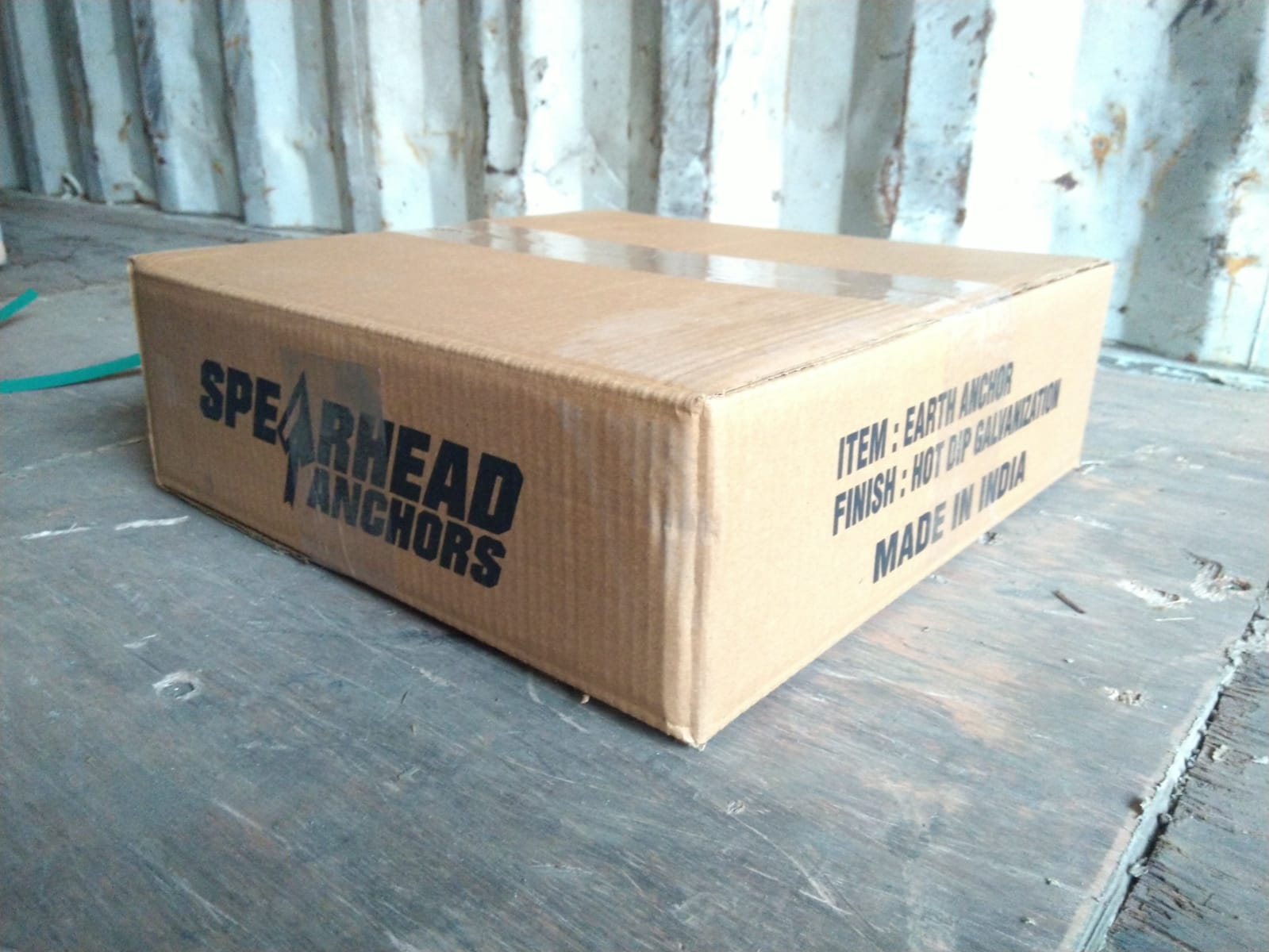

Spearhead Anchors branded export carton
05Branded packing
Finished Spearhead Anchors product carton
06Ready for dispatch
01In-house production02Controlled processing03Export-grade packing04Containerized dispatch

04 — BUILT FOR CONSEQUENCE

Where the ground
must not give.

Application-led anchorage for projects where dependable restraint, efficient installation and documented quality matter.

01

Power & utilities

Pole guying, tower restraint and mission-critical utility infrastructure.

↗
02

Civil infrastructure

Retaining systems, temporary works and engineered structural anchorage.

↗
03

Marine & erosion

Slopes, shorelines, embankments and erosion-control assemblies.

↗
04

Agriculture & outdoor

Fencing, vineyards, shade structures and efficient field installation.

↗
PROPRIETARY SPEARHEAD FORMSpearhead anchor product profile

05 — VERIFIED QUALITY

Evidence
before assertion.

Material reports document SGI-400/15 chemistry and mechanical testing. Supplied test results record achieved working-load values of 121.89 kN for SHSR-1 and 124.99 kN for SH1-1 samples.

  • 01Material chemistry and mechanical reports
  • 02ASTM A153 coating declaration
  • 03Random lot sampling and traceability
  • 04Installation breakage replacement warranty

06 — VIDEO CHANNEL

See Spearhead
in action.

Watch our featured product video, then explore more manufacturing and application content from Fence Fixings on YouTube.

VISIT YOUTUBE CHANNEL

START A CONVERSATION

Bring us the load.
We'll engineer the hold.

Share your application, design load, soil conditions, quantity and destination. Our team will review the requirement and propose the appropriate Spearhead configuration.
